CARRIER / VOLTAS MODEL 6E 250/265/275/299
Select from our large inventory of Carrier / Carlyle compressor spare parts for HVAC applications including air conditioning and refrigeration System. All parts photo and part no. displayed. Other than displayed parts will be given on Request
.
CARRIER / VOLTAS MODEL 6E 250/265/275/299
| Image | Item Description | Description | 6E 20/250 | 6E 25/265 | 6E 30/275 | 6E 40/299 | Action |
|---|---|---|---|---|---|---|---|
 |

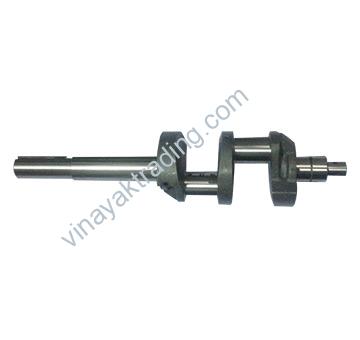

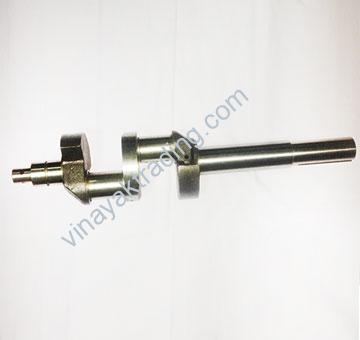

Crankshaft 55 X62 | 06EA 402 003 | |||||
|
Crankshaft 55 X 55 | 06EA 402 013 | 1 | ||||
 |
Crankshaft | 06EA 401 993 | 1 | ||||
|
Crankshaft 55 X 75 | 06EA 406 774 | 1 | ||||
-big.jpg) |

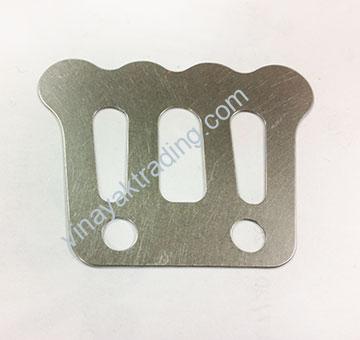

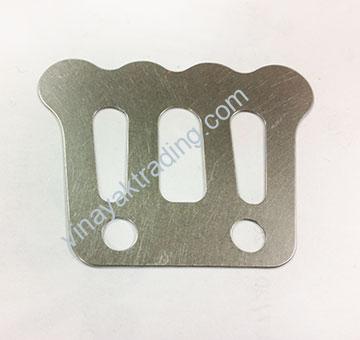

Backer | 06EA 500 153 | 6 | 6 | 6 | 6 | |
 |

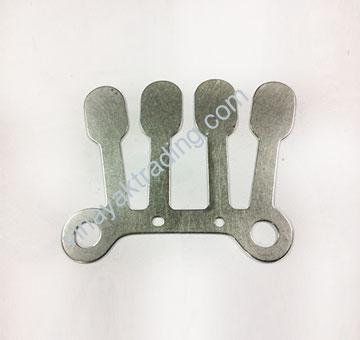

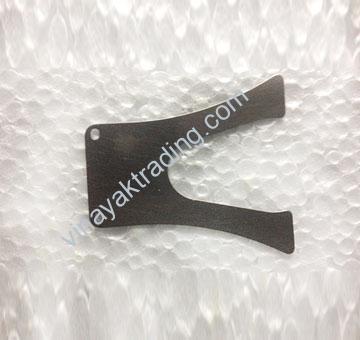

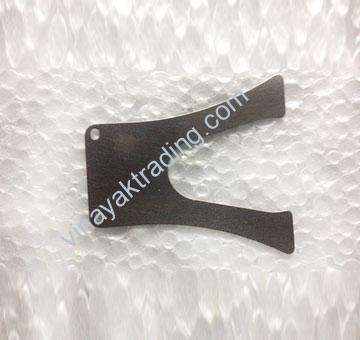

DISCHARGE VALVE REED | 6 | 6 | 6 | 6 | ||
 |

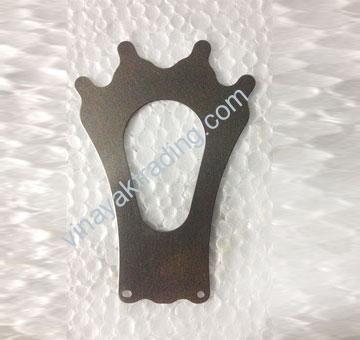

SUCTION VALVE (REED) | 6 | 6 | 6 | 6 | ||
 |
DISCHARGE VALVE (REED) | 6 | 6 | 6 | 6 | ||
|
DISCHARGE VALVE (REED) | 6 | 6 | 6 | 6 | ||
 |

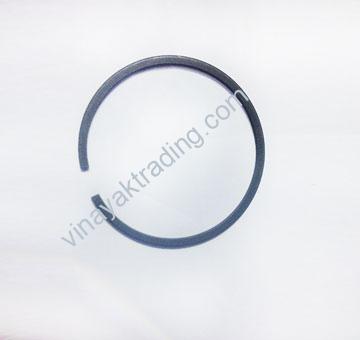

Compression Ring | 06EA 500 321 | 6 | 6 | 6 | 6 | |
 |
SUCTION Valve M.S. 2 1/8 | 06EA 501 363 | 1 | ||||
 |

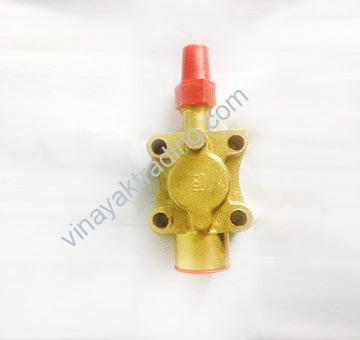

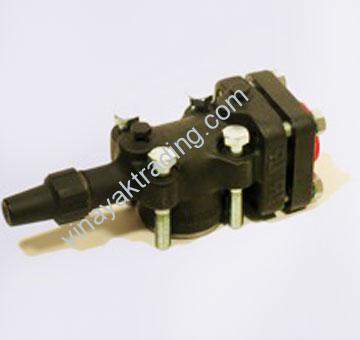

Discharge Stop Valve 1 1/8 | 06EA 504 914 | 1 | 1 | 1 | ||
|
Discharge Stop Valve 1 3/8 | 06EA660090 | 1 | ||||
|
Discharge Stop Valve Reed 1 5/8 | EN07EA041 | 1 | 1 | 1 | ||
 |
Main Bearing STD (-10-40) | 06EA 500 352 | 1 | 1 | 1 | 1 | |
|
Main Bearing STD (10-40) | 06EA 500 362 | 1 | 1 | 1 | 1 | |
 |

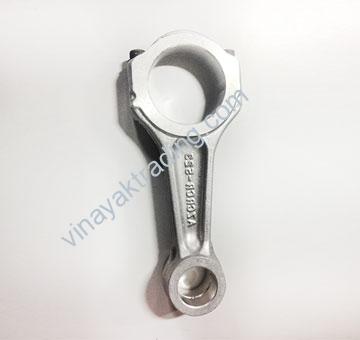

Connecting Rod Short STD | 06EA 660 026 | 6 | ||||
 |

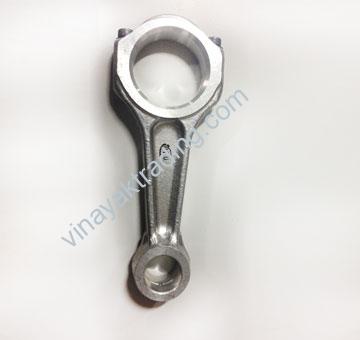

Connecting Rod Long (-20) | 06EA 660 034 | 6 | 6 | 6 | ||
 |

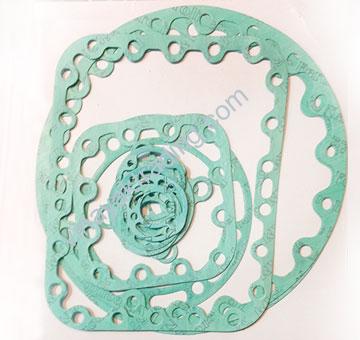

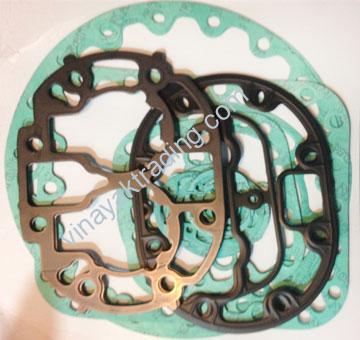

Gasket Set | 06EA 660 071 | 1 | 1 | 1 | 1 | |
 |
GASKET SET WITH METAL GASKET | 06EA660071 | 1 | 1 | 1 | 1 | |
 |
Head Gasket Set | 06EA 660 104 | 1 | 1 | 1 | 1 | |
|
UNLOADING HEAD GASKET METAL | 2 | 2 | 2 | 2 | ||
 |

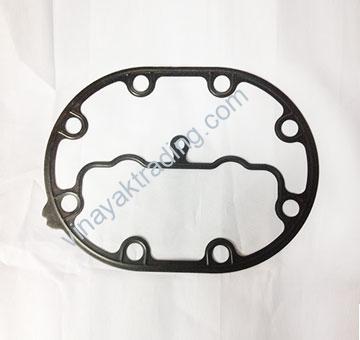

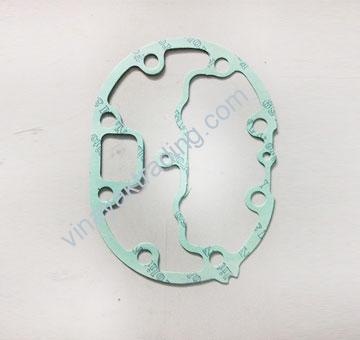

CYLINDER HEAD GASKET | 1 | 1 | 1 | 1 | ||
 |

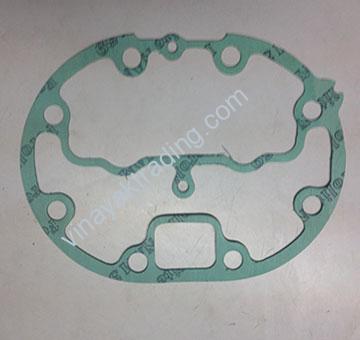

VALVE PLATE GASKET | 1 | 1 | 1 | 1 | ||
|
VALVE PLATE GASKET METAL 0.61 THICK | 1 | 1 | 1 | 1 | ||
 |

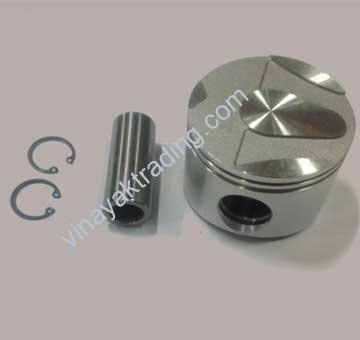

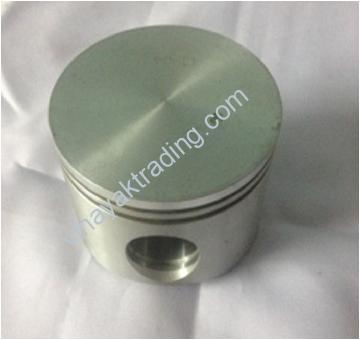

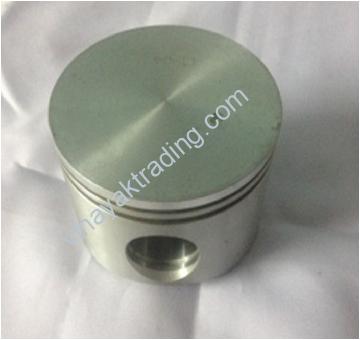

Piston With Pin 68 x17.6 | 06EA 660 109 | 6 | 6 | 6 | ||
 |
Piston 2 Step | 06EA 660 110 | 6 | ||||
 |

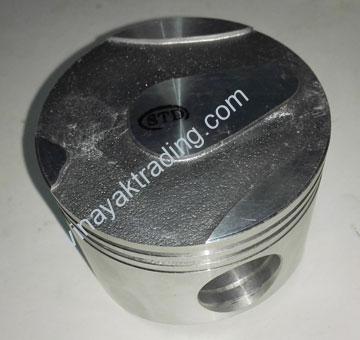

Piston | 6 | |||||
 |
Piston | ||||||
 |

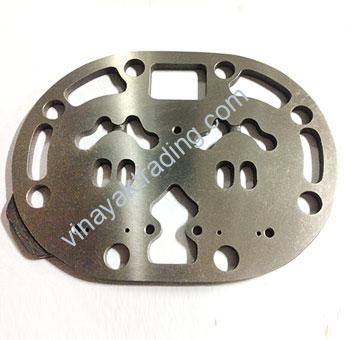

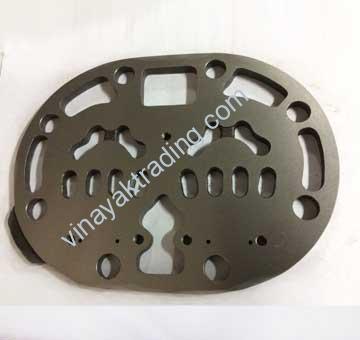

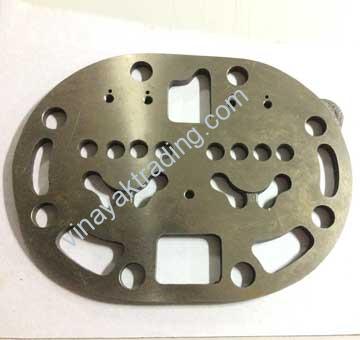

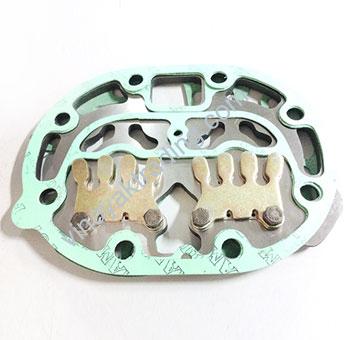

Valve Plate | 06EA 660 137 | 3 | 3 | 3 | 3 | |
 |
VALVE PLATE | 3 | 3 | 3 | 3 | ||
 |

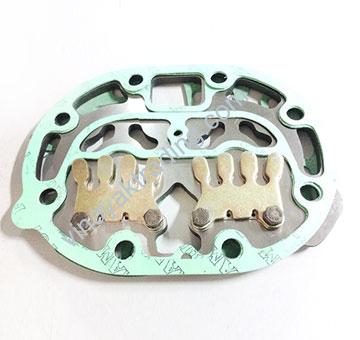

VLAVE PLATE ASSEMBLY | 3 | 3 | 3 | 3 | ||
 |
VLAVE PLATE | 3 | 3 | 3 | 3 | ||
 |

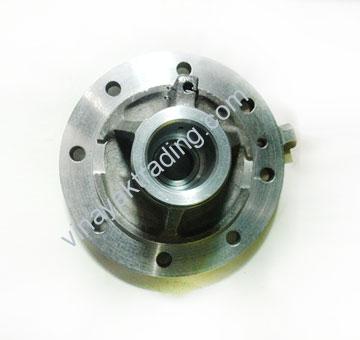

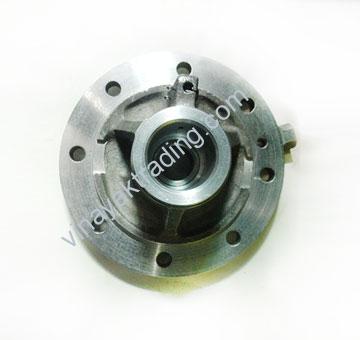

Oil Pump Assembly | 06EA 660 157 | 1 | 1 | 1 | 1 | |
 |
THRUST WASHER | 06EA500-101 | 1 | 1 | 1 | 1 | |
 |

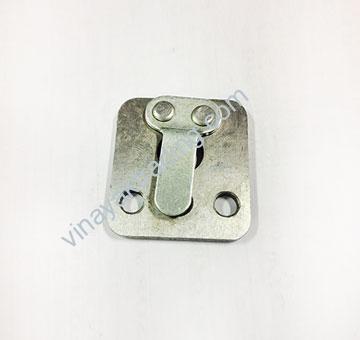

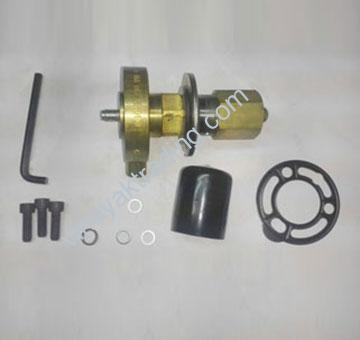

Block Off Plate Unloading Head Or Capacity Control Port (UNLOADER REPAIR KIT ASSEMBLY ) | 06EA660-79 | 1 | 1 | |||
|

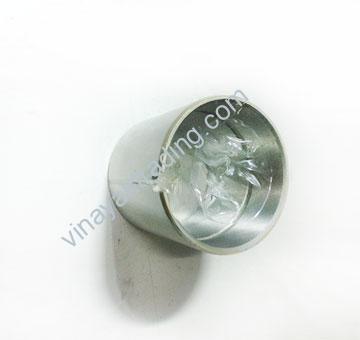

MAIN BUSHING STD (CRANK CASE SIDE ) | 06EA500-362 | 1 | 1 | 1 | 1 | |
 |

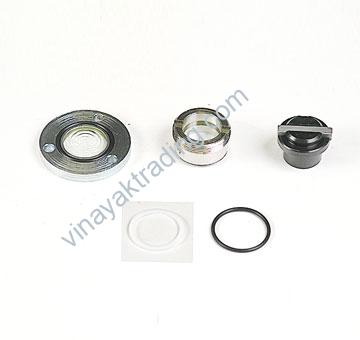

SIGHTH GLASS INDICATOR | 1 | 1 | 1 | 1 | ||
 |

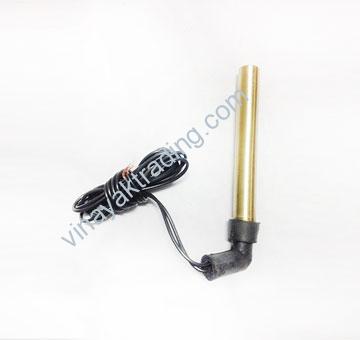

240V 180W CRANK CASE HEATER | 1 | 1 | 1 | 1 | ||
 |

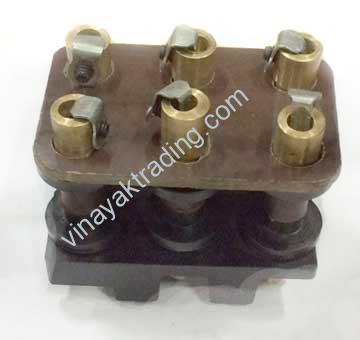

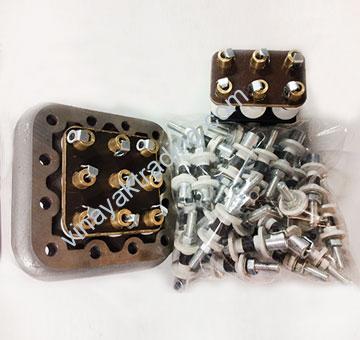

TERMINAL KIT -6 PIN | 06EA66051(125) | 1 | 1 | |||
 |

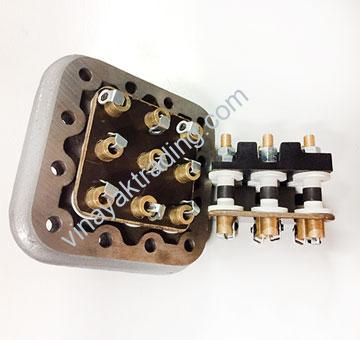

TERMINAL PLATE ,9LEAD | 06EA660087 | 1 | 1 | |||
 |
TERMINAL BOLT ONLY | 1 | 1 | 1 | 1 | ||
 |
OIL PUMP ASSEMBLY STD(-20) | 06EA660-157 | 1 | 1 | 1 | 1 | |
 |
CHECK VALVE ASSEMBLY | 06EA660-001 | |||||
 |

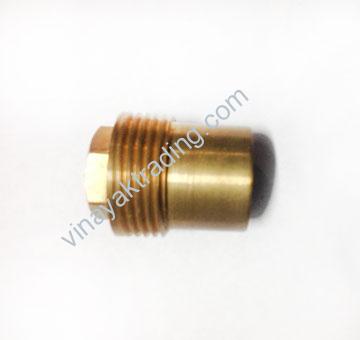

RELIEF VALVE ASSEMBLY | 1 | 1 | 1 | 1 | ||
 |

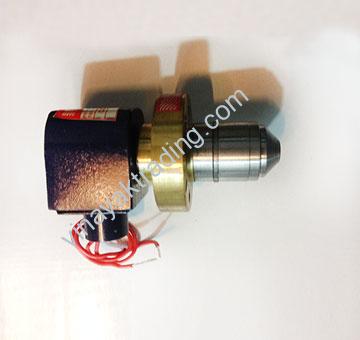

SOLINOID VALVE | 1 | 1 | 1 | 1 | ||
 |

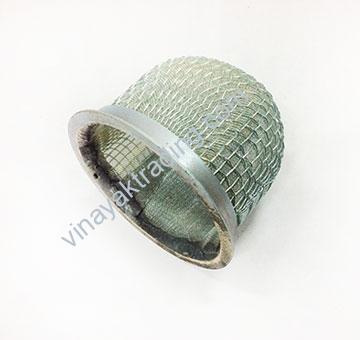

SUCTION STRAINER | 6DA402133 | 1 | 1 | |||
 |

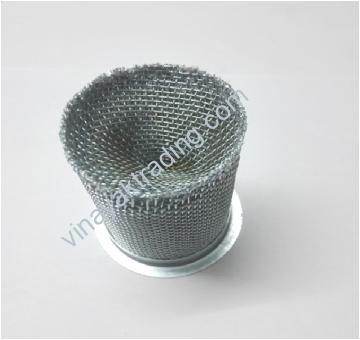

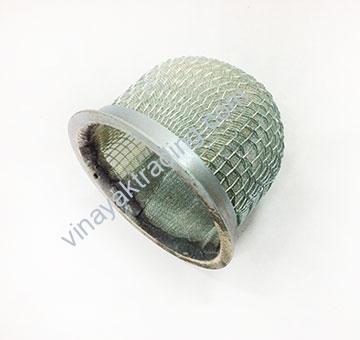

SUCTION STRAINER CONE TYPE | 1 | 1 |
