CARRIER / VOLTAS MODEL 5F 20/30/40/60
Select from our large inventory of Carrier / Carlyle compressor spare parts for HVAC applications including air conditioning and refrigeration System. All parts photo and part no. displayed. Other than displayed parts will be given on Request.
CARRIER / VOLTAS MODEL 5F 20/30/40/60
| Image | Carrier Part No | Description | 5F 20 | 5F 30 | 5F 40 | 5F 60 | Action |
|---|---|---|---|---|---|---|---|
 |
Gasket 5F20 | 0211202 5F20 | 1 | ||||
 |
Gasket 5F30 | 0211204 5F30 | 1 | ||||
 |
Gasket Set 5F40 | 0211206 5F40 | 1 | ||||
 |
Gasket Set 5F60 | 0211208 5F60 | 1 | ||||
 |

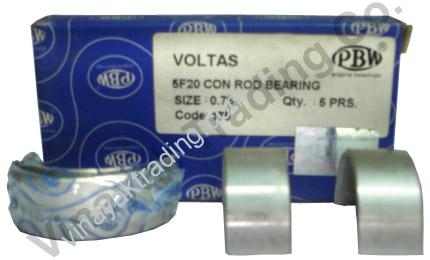

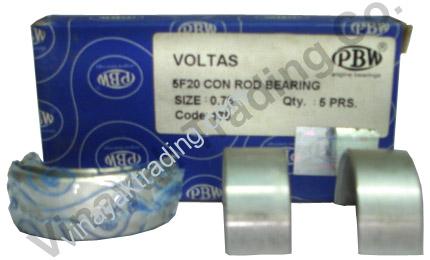

Con Rod Bearing | 5F20-1002 | 4 | 6 | 8 | 12 | |
 |

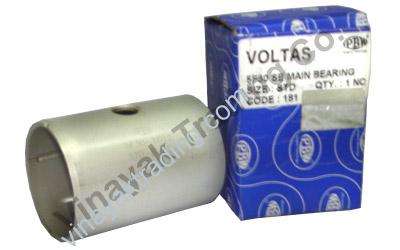

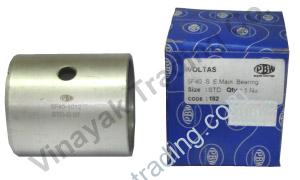

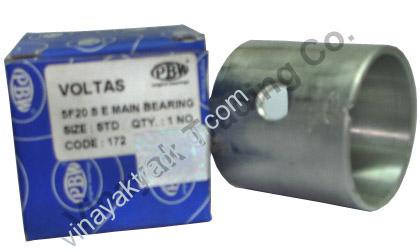

Main Bearing Seal End | 5F40-1012 | 1 | 1 | |||
 |

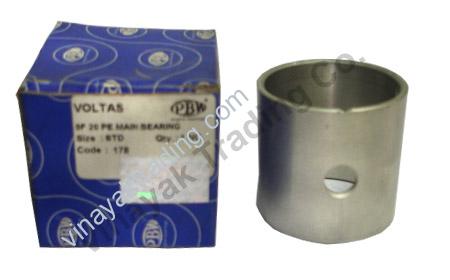

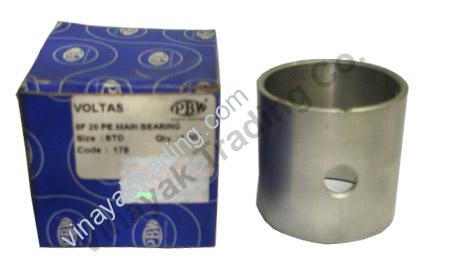

Main Bearing Pump End | 5F20-1022 | 1 | ||||
 |

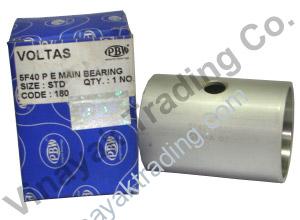

Main Bearing Pump End | 5F40-1022 | 1 | 1 | 1 | ||
 |
Main Bearing Seal End | 5F30-1012 | 1 | ||||
 |
Main Bearing Seal End | 5F20-1022 | 1 | ||||
 |

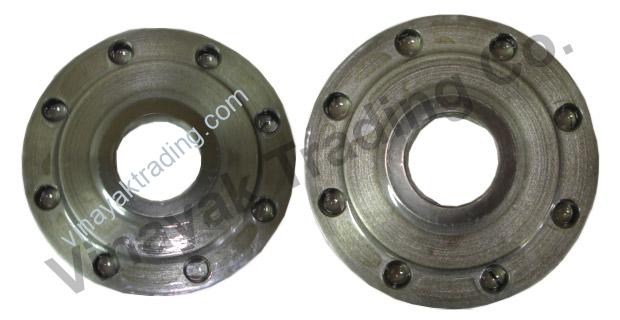

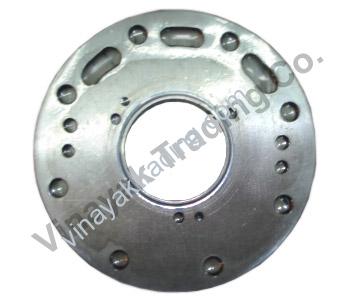

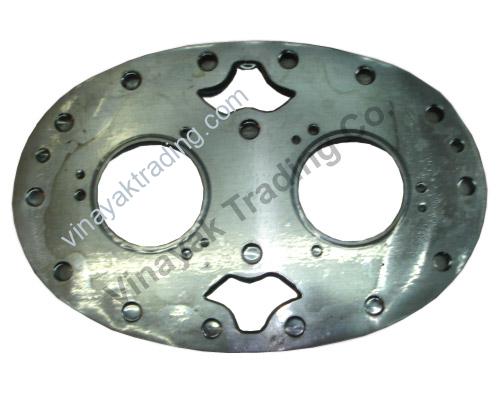

Valve Plate | 5F40-1103 | 2 | 3 | |||
 |
Valve Plate | 5F30-1103 | 2 | 3 | |||
 |
Suction Valve Disc | 5F20-1142 | 2 | 3 | 4 | 6 | |
 |
Discharge Valve Disc | 5F20-1132 | 2 | 3 | 4 | 6 | |
 |
Valve Lifter Pin | 6g45-1151 | 6 | 12 | 18 | 24 | |
 |
Valve Lifter Spring | 6g45-1191 | 6 | 12 | 18 | 24 | |
 |
D.V.Guide Lock Washer | 5F20-1481 | 6 | 9 | 12 | 18 | |
 |

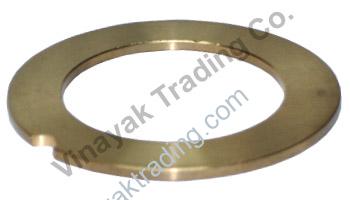

P.E.Bearing Washer (Brass) | 5F20-1741 | 2 | 2 | 1 | 1 | |
|
Seal End Bearing Washer (Brass) | 5F40-1751 | 1 | 1 | |||
 |

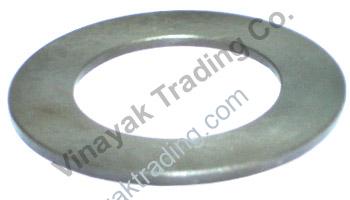

Seal End Thrust Washer | 5F40-1761 | 1 | 1 | |||
 |
Seal End Thrust Washer (Steel) | 5F20-1761 | 1 | 1 | |||
 |
Unloader Sleeve | 5F20-1752 | 1 | 2 | 3 | 4 | |
 |

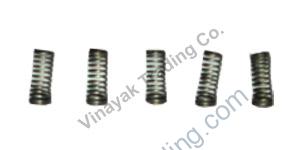

Suction Valve Spring | 5F20-1791 | 12 | 18 | 24 | 36 | |
 |
Discharge Valve Spring | 5F20-1801 | 12 | 18 | 24 | 36 | |
 |
D.Valve Guide Assy | 5F20-112 | 2 | 3 | 4 | 6 | |
 |
D.V. Guide Inner Sear | 5F20-1191 | 2 | 3 | 4 | 6 | |
 |
Seal Lock Plate | 5F20-1201 | 2 | 3 | 4 | 6 | |
 |
D.V.Guide (Bare) | 5F20-1322 | 2 | 3 | 4 | 6 | |
 |

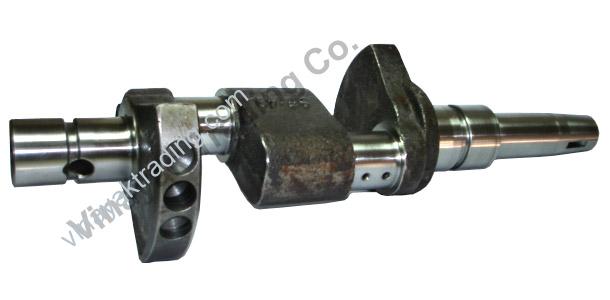

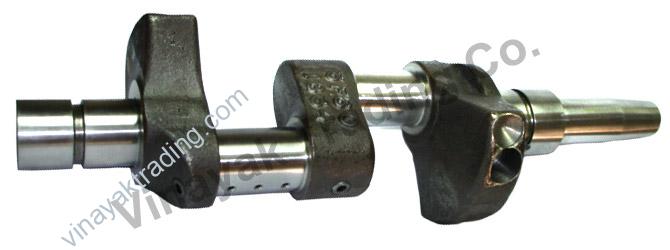

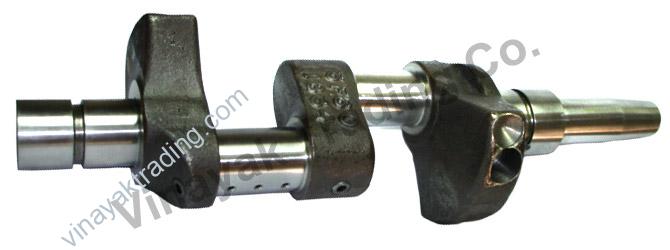

Crankshaft 5F40 | 5F40-114 | 1 | ||||
 |
Crankshaft 5F60 | 5F60-114 | 1 | ||||
 |

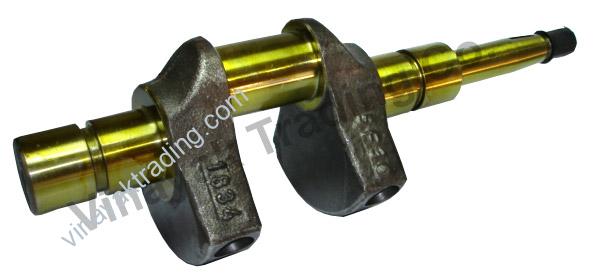

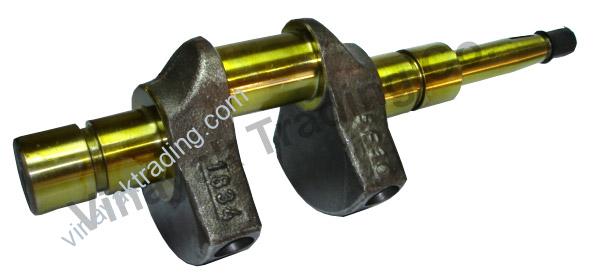

Crankshaft 5F20 | 5F20-1183 | 1 | ||||
|
Crankshaft 5F30 | 5F30-1184 | 1 | ||||
 |

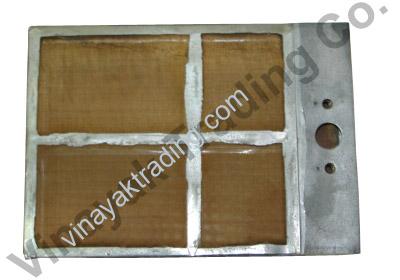

Oil Filter Screen | 5F40-127 | 1 | 1 | |||
 |
Oil Filter Screen | 5F20-127 | 1 | 1 | |||
 |

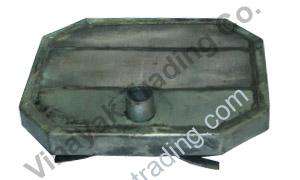

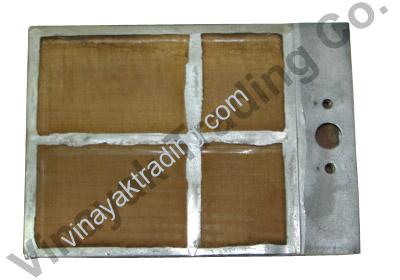

Suction Strainer 5F40 | 5F40-132 | 1 | ||||
|
Suction Strainer 5F60 | 5F60-132 | 1 | ||||
|
Suction Strainer 5F20 | 5F20-132 | 1 | ||||
|
Suction Strainer 5F30 | 5F30-132 | 1 | ||||
|
Hand Hole Cover | 1 | 1 | ||||
 |
Unloader Power Element As | 5F20-173 | 1 | 2 | 3 | 4 | |
 |

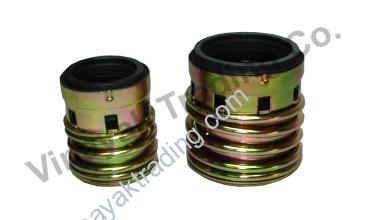

Seal Assy 5F40/60 | 1 | 1 | ||||
|
Seal Assy 5F20/30 | 5F20-317 | 1 | 1 | |||
 |
Seal Cover Plate | 5F40-2073 | 1 | 1 | |||
|
Seal Cover Plate 5F20/30 | 5F20-2073 | 1 | 1 | |||
 |
Cylinder Sleeve | 5F20-1003 | 2 | 3 | 4 | 6 | |
 |
Piston | 5F20-1023 | 2 | 3 | 4 | 6 | |
 |
Piston Pin | 5F20-1051 | 2 | 3 | 4 | 6 | |
 |
Compression Ring | 5F20-1071 | 4 | 6 | 8 | 12 | |
|
Oil Ring | 5F20-1091 | 4 | 6 | 8 | 12 | |
 |
Lock Ring | 5F20-3521 | 4 | 6 | 8 | 12 | |
 |

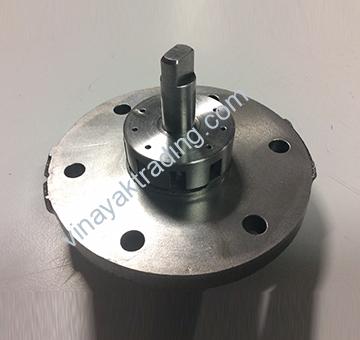

Oil Pump Package | 5F20-130 | 1 | 1 | 1 | 1 | |
 |
Con.Rod Assy | 5F20-0103 | 2 | 3 | 4 | 6 | |
 |
Con.Rod Bush | 5F20-1031 | 2 | 3 | 4 | 6 | |
 |
Con.Rod Bolt | 5F20-1041 | 4 | 6 | 8 | 12 | |
 |
Con.Rod Nut | AT161AA202 | 4 | 6 | 8 | 12 | |
 |
Dish. Shut Off Valve 1 -3/8 | EN07E039 | 1 | 1 | |||
|
Suction Shut Off Valve 1 - 3/8 | 1 | 1 | ||||
 |
Dish. Shut Off Valve 1 5/8 | 1 | |||||
 |
Suction Shut Off Valve 2 1/8 | 1 | |||||
 |
Discharge Shut off Valve 7/8 or 1 1/8 | 1 | |||||
 |
Suction Shut off Valve 1 1/8 | 1 | |||||
 |
Oil Return Check Valve | 5H40-101 | 1 | 1 | |||
 |
Oil Return Check Valve | 1 | 1 | ||||
|
Oil Pr.Regulating Valve | 5H40-782 | 1 | 1 | |||
 |
Control Valve Assy | 1 | 1 | 1 | 1 | ||
 |

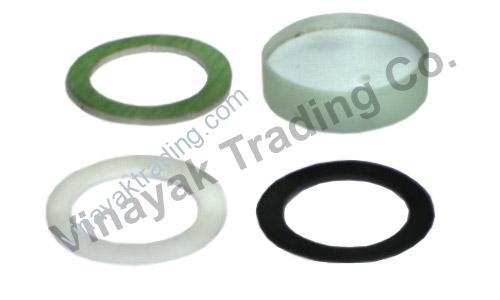

Sight Glass | 5F20-1001 | 1 | 1 | 1 | 1 | |
 |
Hydraulic Relay | 5F40-767 | 1 | 1 | 1 | 1 | |
 |
Bellow assy for C.Valve | 1 | 1 | 1 | 1 | ||
 |
Stem For Control Vale | 1 | 1 | 1 | 1 | ||
 |
Oil. Pump Bush | 7K3-1542 | 1 | 1 | 1 | 1 | |
 |
Flywheel 5F20 2B | 1 | |||||
|
Flywheel 5F30 3B | 1 | |||||
|
Flywheel 5F40-636 | 1 | 1 | ||||
 |
Felt Filter | 1 | |||||
|
Felt Filter | 1 | |||||
|
Felt Filter | 1 | |||||
|
Felt Filter | 1 | |||||
 |
Magnetic Plug | 1 | 1 | 1 | 1 |
