CARRIER / VOLTAS MODEL 5H 40/60/80/120
Select from our large inventory of Carrier / Carlyle compressor spare parts for HVAC applications including air conditioning and refrigeration System. All parts photo and part no. displayed. Other than displayed parts will be given on Request
.
CARRIER / VOLTAS MODEL 5H 40/60/80/120
| Image | Item Description | Description | 5H 40/46 | 5H 60/66 | 5H 80/86 | 5H 120/126 | Action |
|---|---|---|---|---|---|---|---|
 |
(Complete Gasket Set) Gasket 5H40/46 | 5H40-502 | 1 | ||||
 |
Gasket 5H60/66 | 5H60-502 | 1 | ||||
 |
Gasket Set 5H80/86 | 5H80-502 | 1 | ||||
 |
Gasket Set 5H120/126 | 5H120-502 | 1 | ||||
 |
Bearing Half Connecting Rod std. | 5H40-1002 | 8 | 12 | 16 | 24 | |
 |
Main Bearing Seal End | 5H40-1012 | 1 | 1 | 1 | 1 | |
 |

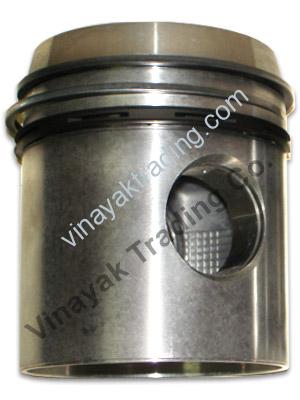

Piston 5H40/60/80/120 | 5H40-1023 | 4 | 6 | 8 | 12 | |
 |
Aluminum Piston 5H46/66/86/126 | 5H46-1023 | 4 | 6 | 8 | 12 | |
 |

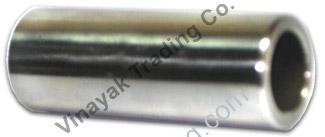

Piston Pin | 5H46-1051 | 4 | 6 | 8 | 12 | |
 |
Lock Ring (Circlip) | 5H40-3531 | 8 | 12 | 16 | 24 | |
 |
Oil Ring | 5H40-1091 | 8/4 | 12/6 | 16/8 | 24/2 | |
 |
Piston Ring Compression 5H46/66/86/126 | 5H46-1071 | 8 | 12 | 16 | 24 | |
 |

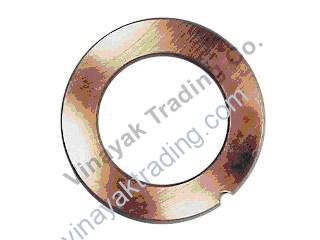

Seal End Bearing Washer (Steel) | 5H40-1072 | 1 | 1 | 1 | 1 | |
 |
Seal End Thrust Washer (Steel) | 5H120-1072 | 1 | ||||
 |

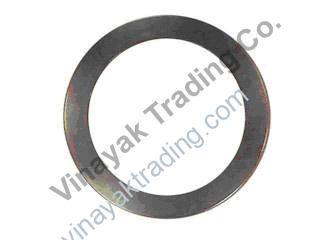

Pump End Bearing Washer | 5H40-1082 | 1 | 1 | 1 | 1 | |
 |

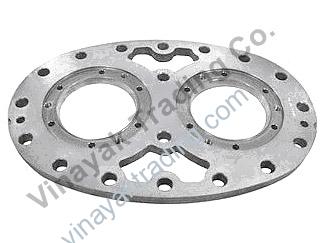

Valve Plate | 5H40-1103 | 2 | 3 | 4 | 6 | |
 |
Suction Valve Disc | 5H40-1142 | 4 | 6 | 8 | 12 | |
 |
Discharge Valve Guide Lock Washer | 5H40-1481 | 12 | 18 | 24 | 36 | |
 |
Unloader Sleeve | 5H40-1752 | 3 | 4 | 6 | 8 | |
 |

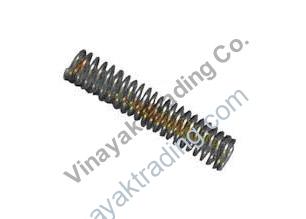

Suction Valve Spring | 5H40-1791 | 24 | 36 | 48 | 72 | |
|
Snap Ring for liner | 5H40-2221 | 4 | 6 | 8 | ||
 |
Pin for Valve Lifter | 5H40-2231 | 18 | 24 | 36 | 48 | |
 |
Spring for Valve Lifter | 5H40-2241 | 18 | 24 | 36 | 48 | |
 |
Shaft Seal Cover Plate | 5H40-2433 | 1 | 1 | 1 | 1 | |
 |
Shaft Key | 5H40-2851 | 1 | 1 | 1 | 1 | |
 |
Heater Casing | 5F20-3742 | 1 | 1 | 2 | 2 | |
 |

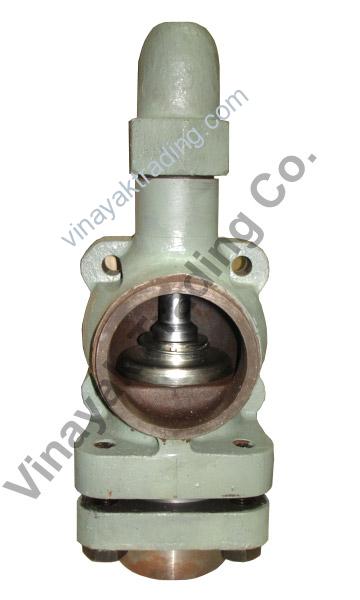

Relief Valve | EBS1F4270 | 1 | 1 | 1 | ||
 |
Relief Valve Assembly 5H120 | 6.3014 | 1 | ||||
 |
Crankcase Heater 230 v | HT31AZ-241 | 1 | 1 | 2 | 2 | |
 |

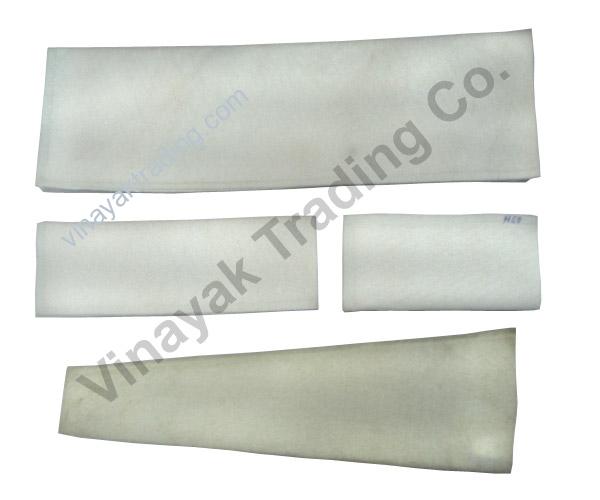

Suction Felt Package | 5H40 A382 | 1 | ||||
|
Suction Felt Package | 5H60 A382 | 2 | ||||
|
Suction Felt Package | 5H80 A382 | 1 | ||||
|
Suction Felt Package | 5H120 A382 | 2 | ||||
 |
Retaining Bend | 6200024 | 1 | ||||
|
Retaining Bend | 6200024 | 2 | ||||
|
Retaining Bend | 6200024 | 1 | ||||
|
Retaining Bend | 6200024 | 2 | ||||
|
Retaining Bend | 6200024 | 1 | ||||
|
Retaining Bend | 6200024 | 2 | ||||
|
Retaining Bend | 6200024 | 2 | ||||
|
Retaining Bend | 6200024 | 2 | ||||
 |
Oil Return Check Valve | 5H40-932 | 2 | 2 | 2 | ||
 |

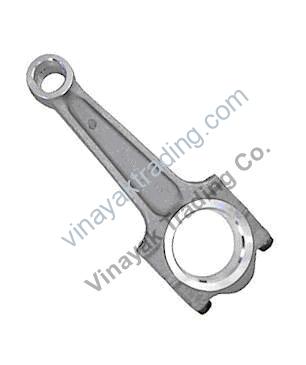

Connecting Rod Assembly | 5H40-103 | 4 | 6 | 8 | 12 | |
 |
Connecting Rod Bolt | 5H40-1041 | 4 | 6 | 8 | 12 | |
 |

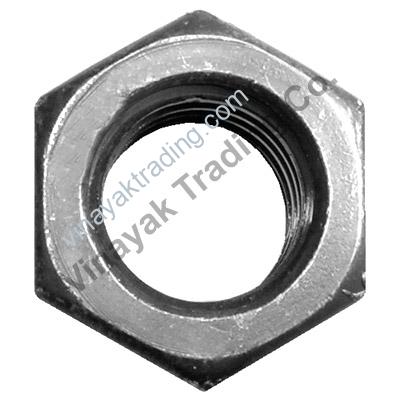

Connecting Rod Nut | AT61AA272 | 8 | 12 | 16 | 24 | |
 |
Connecting Rod Small end Bush | 5H40-1031 | 4 | 6 | 8 | 12 | |
 |
Discharge Valve Guide Assembly | 5H40-112 | 4 | 6 | 8 | 12 | |
 |
Discharge Valve Ring Plate | 5H40-1132 | 4 | 6 | 8 | 12 | |
 |
Discharge Valve Inner Seat | 5H40-1191 | 4 | 6 | 8 | 12 | |
 |
Seal Lock Plate | 5H40-1201 | 4 | 6 | 8 | 12 | |
 |
Discharge Valve Guide | 5H40-1553 | 4 | 6 | 8 | 12 | |
 |
Discharge Valve Spring | 5H40-1801 | 24 | 36 | 48 | 72 | |
 |
Oil Screen package | 5H40-237 | 1 | 1 | 1 | ||
 |
Oil Screen package | 5H120-252 | 1 | ||||
 |
Unloader Power Assembly | 5H40-163 | 3 | 4 | 6 | 8 | |
 |
Pork for above | 5H40-1814 | |||||
 |
Seal Assembly | 5H40-477 | 1 | 1 | 1 | ||
 |
Seal Assembly | 5H120-477 | 1 | ||||
 |
Bearing Head | 5H40-948 | 1 | ||||
 |

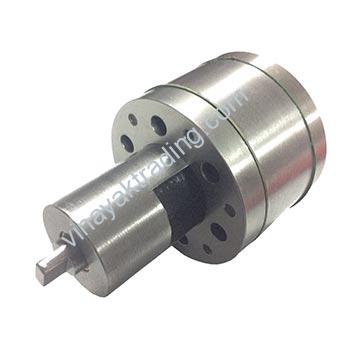

Oil Pump Package | 5H40-A372 | 1 | 1 | 1 | ||
 |
Oil Pump Package | 06LA66008 | 1 | ||||
 |

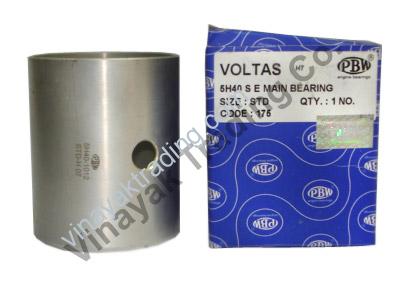

Main Bearing Pump End | 5H40-1022 | 1 | 1 | 1 | ||
|
Main Bearing Pump End | 5H120-1022 | 1 | ||||
 |
Oil Pump Bushing | 7k3-1542 | 1 | 1 | 1 | ||
|
Oil Pump Bush | 5H120-7052 | 1 | ||||
 |
Oil Pressure Regulator | 5H40-962 | 1 | 1 | 1 | ||
|
Oil Pressure Regulator | 5H120-782 | 1 | ||||
 |

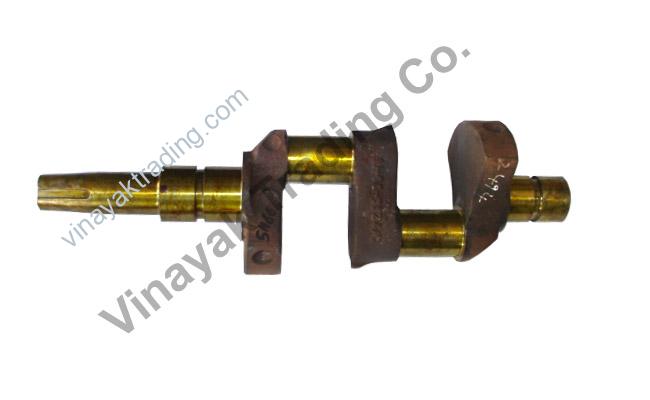

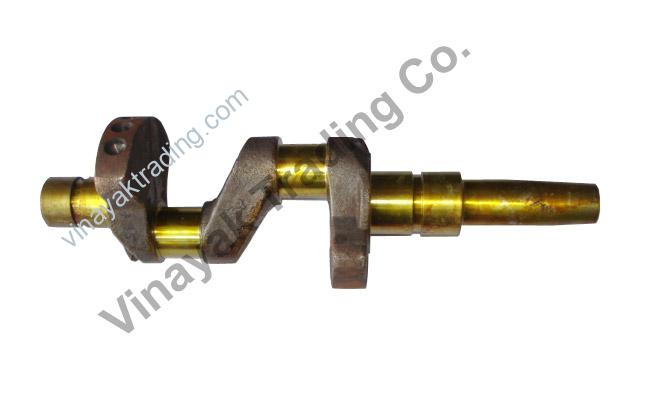

Crankshaft 5H40 | 5H40-562 | 1 | ||||
 |
Crankshaft 5H46 | 5H46-114 | 1 | ||||
|
Crankshaft 5H60 | 5H60-114 | 1 | ||||
 |
Crankshaft 5H66 | 5H66-562 | 1 | ||||
 |
Crankshaft 80 | 5H80-562 | 1 | ||||
|
Crankshaft 5H86 | 5H86-572 | 1 | ||||
 |

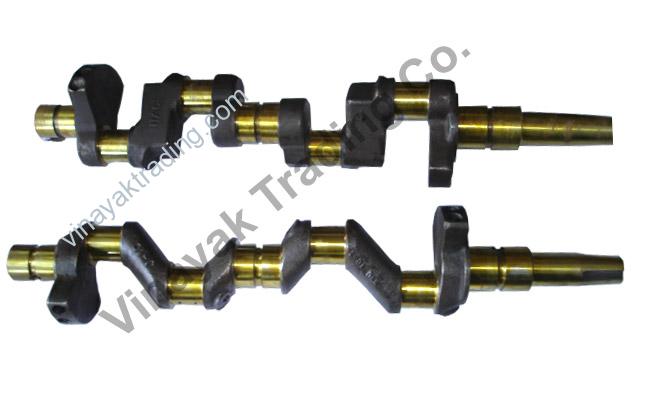

Crankshaft 5H120 | 5H120-114 | 1 | ||||
|
Crankshaft 5H126 | 5H126-562 | 1 | ||||
 |
Suction Strainer 5H40/46 | 5H40-323 | 1 | ||||
 |
Suction Strainer 5H80/86 | 5H80-323 | 1 | ||||
 |
Suction Strainer 5H60/66 | 5h60-132 | 1 | ||||
 |
Suction Strainer 5H120/126 | 5H120-794 | 1 | ||||
 |

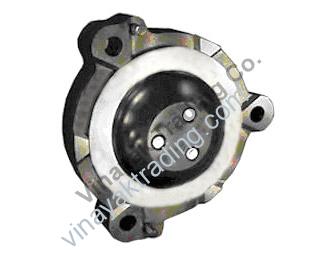

Pump end cover and valve assembly | 5h40 - A564 | 1 | 1 | 1 | ||
 |
Pump end cover and valve assembly | 5h120 - A564 | 1 | ||||
 |
Hydraulic Relay | 5F40-767 | 1 | 1 | 1 | ||
 |
Hydraulic Relay | 6245-123 | 1 | ||||
 |
Magnetic Plug | CA99JA101 | 1 | 1 | 1 | 1 | |
 |
Cylinder Liner | 5H40-1003 | 4 | 6 | 8 | 12 | |
 |
Center Bearing | 5H80-1242 | 1 | ||||
 |
Center Bearing | 5H120-1242 | 1 | 1 | |||
 |
Oil Impeller | 5H120-1354 | 1 | ||||
 |
Discharge Shut off Valve 2 - 1/8 | EMI3FC521 | 1 | ||||
|
Suction Shut off Valve 2 - 5/8 | EF13FC551 | 1 | ||||
 |
Discharge Shut off Valve - 3-1/8 | EMI3GC553 | 1 | ||||
|
Discharge Shut off Valve - 3-1/8 | EMI3GC553 | 1 | ||||
|
Discharge Shut off Valve - 3-1/8 | EMI3GC553 | 1 | ||||
|
Suction Shut off Valve - 3-1/8 | EMI3GC555 | 1 | ||||
 |
Suction Shut off Valve - 4 1/8 | MI3GC555 | 1 | ||||
|
Discharge Shut off Valve - 4 1/8 | 6302500 | 1 | ||||
 |
Control Valve Package | 5F40-721 | 1 | 1 | 1 | 1 | |
 |
Bellow Assembly | 5HG-660-014 | 1 | 1 | 1 | 1 | |
 |
External Valve Assembly | 5F88-213 | 1 | 1 | 1 | 1 | |
 |
Flywheel 5C x 11 ¾ | 1 | 1 | ||||
|
Flywheel 7C x 11 ¾ | 1 | |||||
|
Flywheel 9C x 11 ¾ | 1 | |||||
 |
Oil pump 5H120 | 5H120-A372 |
