Gasket Set

Compressor Open Type Bitzer 0 - vii

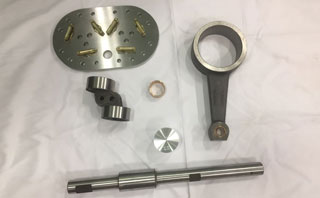

Select from our large inventory of BITZER compressor spare parts for HVAC applications including air conditioning and refrigeration System. All parts photo and part no. displayed. Other than displayed parts will be given on Request.


Compressor Open Type Bitzer 0 - vii

Sr No. POS Bitzer 0 Item Description
1 1 300000-01 BODY
2 2 BEARING BUSH
3 3 BEARING BUSH
4 4 BEARING BUSH
5 5 BEARING BUSH
6 6 310000-01 SHAFT
7 7 374008-01 SHAFT SEAL
8 15 303125-01 FLY WHEEL
9 16 315107-01 KEY FOR FLYWHEEL
10 17 315100-01 KEY FOR FLYWHEEL
11 18 382001-03 WASHER FOR FLY WHEEL
12 19 382201-03 SPRING WASHER FOR FLY WHEEL
13 22 SIGHT GLASS
14 27 386002-01 BALL
15 30 313100-01 INSERT
16 38 302000-01 ECCENTRIC
17 39 315107-06 KEY FOR ECCENTRIC
18 40 315100-01 KEY FOR ECCENTRIC
19 43 315107-06 KEY FOR ECCENTRIC
20 44 315100-01 KEY FOR ECCENTRIC
21 47 320308-01 LOCKING PLATE
22 48 302239-01 CONNECTING ROD/ PISTON
23 49 302100-01 CONN. ROD
24 50 BEARING BUSH FOR CONN. ROD
25 51 302200-01 PISTON
26 52 383401-08 PISTON PIN
27 53 383023-02 LOCKING PIN
28 54 PISTON RING
29 55 372400-01 GASKET ROD/CYLINDER
30 56 300100-01 CYLINDER
31 61 304050-01 VALVE PLATE
32 62 320210-01 D.V. REED
33 71 320200-01 S.V. REED
34 73 304000-01 VALVE PLATE
35 76 302300-01 CYLINDER HEAD AIR COOLED
36 78 CYLINDER HEAD W.C.
37 101 372800-01 SET OF GASKET
Sr No. POS Bitzer 1 Item Description
5 1 300001-01 BODY
6 2 BEARING BUSH
7 3 BEARING BUSH
8 4 BEARING BUSH
9 5 BEARING BUSH
10 6 SHAFT
11 7 SHAFT SEAL
12 15 FLY WHEEL
13 16 KEY FOR FLYWHEEL
14 17 KEY FOR FLYWHEEL
15 18 WASHER FOR FLY WHEEL
16 19 SPRING WASHER FOR FLY WHEEL
17 22 361806-01 SIGHT GLASS
18 27 BALL
19 30 INSERT
20 38 302001-01 ECCENTRIC
21 39 KEY FOR ECCENTRIC
22 40 KEY FOR ECCENTRIC
23 43 KEY FOR ECCENTRIC
24 44 KEY FOR ECCENTRIC
25 47 320308-02 LOCKING PLATE
26 48 302239-02 CONNECTING ROD/ PISTON
28 49 302101-01 CONN. ROD
27 50 BEARING BUSH FOR CONN. ROD
29 51 302201-00 PISTON
30 52 383401-10 PISTON PIN
31 53 LOCKING PIN
32 54 PISTON RING
33 55 372401-01 GASKET ROD/CYLINDER
34 56 300101-01 CYLINDER
35 61 304050-02 VALVE PLATE
36 62 D.V. REED
37 71 320200-02 S.V. REED
38 73 304001-01 VALVE PLATE
39 76 302301-01 CYLINDER HEAD AIR COOLED
40 78 CYLINDER HEAD W.C.
41 101 372800--02 SET OF GASKET
Sr No. POS Bitzer 2 Item Description
5 1 300002-01 BODY
6 2 BEARING BUSH
7 3 BEARING BUSH
8 4 BEARING BUSH
9 5 BEARING BUSH
10 6 310001-01 SHAFT
11 7 374008-02 SHAFT SEAL
12 15 303123-10 FLY WHEEL
13 16 315107-02 KEY FOR FLYWHEEL
14 17 315100-04 KEY FOR FLYWHEEL
15 18 WASHER FOR FLY WHEEL
16 19 382201-04 SPRING WASHER FOR FLY WHEEL
17 22 361802-01 SIGHT GLASS
18 27 BALL
19 30 INSERT
20 38 302002-01 ECCENTRIC
21 39 315107-07 KEY FOR ECCENTRIC
22 40 KEY FOR ECCENTRIC
23 43 315107-08 KEY FOR ECCENTRIC
24 44 315100-04 KEY FOR ECCENTRIC
25 47 320308-03 LOCKING PLATE
26 48 302239-03 CONNECTING ROD/ PISTON
28 49 302102-01 CONN. ROD
27 50 BEARING BUSH FOR CONN. ROD
29 51 302202-01 PISTON
30 52 383401-12 PISTON PIN
31 53 LOCKING PIN
32 54 PISTON RING
33 55 372402-01 GASKET ROD/CYLINDER
34 56 300102-01 CYLINDER
35 61 304050-03 VALVE PLATE
36 62 D.V. REED
37 71 320200-03 S.V. REED
38 73 304002-01 VALVE PLATE
39 76 302302-01 CYLINDER HEAD AIR COOLED
40 78 CYLINDER HEAD W.C.
41 101 372800-03 SET OF GASKET
Sr No. POS Bitzer 3 Item Description
5 1 300003-01 BODY
6 2 BEARING BUSH
7 3 BEARING BUSH
8 4 BEARING BUSH
9 5 BEARING BUSH
10 6 SHAFT
11 7 SHAFT SEAL
12 15 303123-10 FLY WHEEL
13 16 KEY FOR FLYWHEEL
14 17 KEY FOR FLYWHEEL
15 18 WASHER FOR FLY WHEEL
16 19 SPRING WASHER FOR FLY WHEEL
17 22 SIGHT GLASS
18 27 BALL
19 30 INSERT
20 38 302003-01 ECCENTRIC
21 39 KEY FOR ECCENTRIC
22 40 KEY FOR ECCENTRIC
23 43 KEY FOR ECCENTRIC
24 44 KEY FOR ECCENTRIC
25 47 LOCKING PLATE
26 48 302239-04 CONNECTING ROD/ PISTON
28 49 302118-01 CONN. ROD
27 50 311103-01 BEARING BUSH FOR CONN. ROD
29 51 302204-01 PISTON
30 52 383401-14 PISTON PIN
31 53 382231-02 LOCKING PIN
32 54 PISTON RING
33 55 372403-01 GASKET ROD/CYLINDER
34 56 300104-01 CYLINDER
35 61 304050-04 VALVE PLATE
36 62 D.V. REED
37 71 320200-04 S.V. REED
38 73 304003-01 VALVE PLATE
39 76 302303-01 CYLINDER HEAD AIR COOLED
40 78 302304-01 CYLINDER HEAD W.C.
41 101 372800-04 SET OF GASKET
Sr No. POS Bitzer 4 Item Description
5 1 300025-01 BODY
6 2 BEARING BUSH
7 3 311104-02 BEARING BUSH
8 4 311104-01 BEARING BUSH
9 5 BEARING BUSH
10 6 310002-01 SHAFT
11 7 374008-03 SHAFT SEAL
12 15 303219-51 FLY WHEEL
13 16 315107-03 KEY FOR FLYWHEEL
14 17 315100-05 KEY FOR FLYWHEEL
15 18 382011-02 WASHER FOR FLY WHEEL
16 19 SPRING WASHER FOR FLY WHEEL
17 22 361806-02 SIGHT GLASS
18 27 386002-02 BALL
19 30 INSERT
20 38 302004-01 ECCENTRIC
21 39 315107-09 KEY FOR ECCENTRIC
22 40 315100-02 KEY FOR ECCENTRIC
23 43 315107-10 KEY FOR ECCENTRIC
24 44 315100-05 KEY FOR ECCENTRIC
25 47 320308-04 LOCKING PLATE
26 48 302239-05 CONNECTING ROD/ PISTON
28 49 302118-02 CONN. ROD
27 50 311103-02 BEARING BUSH FOR CONN. ROD
29 51 302233-14 PISTON
30 52 383401-16 PISTON PIN
31 53 382231-03 LOCKING PIN
32 54 382300-22 PISTON RING
33 55 372404-01 GASKET ROD/CYLINDER
34 56 300104-01 CYLINDER
35 61 304050-05 VALVE PLATE
36 62 D.V. REED
37 71 S.V. REED
38 73 304004-01 VALVE PLATE
39 76 302305-01 CYLINDER HEAD AIR COOLED
40 78 302306-01 CYLINDER HEAD W.C.
41 101 372800-05 SET OF GASKET
Sr No. POS Bitzer 5 Item Description
5 1 300025-02 BODY
6 2 BEARING BUSH
7 3 311104-04 BEARING BUSH
8 4 311104-03 BEARING BUSH
9 5 BEARING BUSH
10 6 310003-01 SHAFT
11 7 374008-04 SHAFT SEAL
12 15 303220-51 FLY WHEEL
13 16 315107-04 KEY FOR FLYWHEEL
14 17 315100-07 KEY FOR FLYWHEEL
15 18 WASHER FOR FLY WHEEL
16 19 382211-03 SPRING WASHER FOR FLY WHEEL
17 22 SIGHT GLASS
18 27 386002-03 BALL
19 30 INSERT
20 38 302005-01 ECCENTRIC
21 39 315107-11 KEY FOR ECCENTRIC
22 40 315100-07 KEY FOR ECCENTRIC
23 43 315107-11 KEY FOR ECCENTRIC
24 44 315100-07 KEY FOR ECCENTRIC
25 47 320308-05 LOCKING PLATE
26 48 302239-06 CONNECTING ROD/ PISTON
28 49 302105-01 CONN. ROD
27 50 BEARING BUSH FOR CONN. ROD
29 51 302233-16 PISTON
30 52 383401-18 PISTON PIN
31 53 382231-05 LOCKING PIN
32 54 382300-29 PISTON RING
33 55 372405-01 GASKET ROD/CYLINDER
34 56 300105-01 CYLINDER
35 61 304050-06 VALVE PLATE
36 62 320210-02 D.V. REED
37 71 S.V. REED
38 73 304005-01 VALVE PLATE
39 76 302307-01 CYLINDER HEAD AIR COOLED
40 78 302308-01 CYLINDER HEAD W.C.
41 101 372800-06 SET OF GASKET
Sr No. POS Bitzer 6 Item Description
5 1 300025-03 BODY
6 2 311100-09 BEARING BUSH
7 3 311100-09 BEARING BUSH
8 4 311100-12 BEARING BUSH
9 5 BEARING BUSH
10 6 310004-01 SHAFT
11 7 374008-05 SHAFT SEAL
12 15 303316-51 FLY WHEEL
13 16 315107-05 KEY FOR FLYWHEEL
14 17 315100-08 KEY FOR FLYWHEEL
15 18 382011-04 WASHER FOR FLY WHEEL
16 19 382201-06 SPRING WASHER FOR FLY WHEEL
17 22 SIGHT GLASS
18 27 305412-04 BALL
19 30 366103-01 INSERT
20 38 315100-08 ECCENTRIC
21 39 KEY FOR ECCENTRIC
22 40 KEY FOR ECCENTRIC
23 43 KEY FOR ECCENTRIC
24 44 KEY FOR ECCENTRIC
25 47 302118-03 LOCKING PLATE
26 48 311103-04 CONNECTING ROD/ PISTON
28 49 302233-18 CONN. ROD
27 50 381401-20 BEARING BUSH FOR CONN. ROD
29 51 382231-06 PISTON
30 52 382300-31 PISTON PIN
31 53 372406-01 LOCKING PIN
32 54 300106-01 PISTON RING
33 55 380157-03 GASKET ROD/CYLINDER
34 56 320315-03 CYLINDER
35 61 320230-03 VALVE PLATE
36 62 325000-20 D.V. REED
37 71 304006-01 S.V. REED
38 73 372606-01 VALVE PLATE
39 76 302309-01 CYLINDER HEAD AIR COOLED
40 78 CYLINDER HEAD W.C.
41 101 372800-07 SET OF GASKET
Sr No. POS Bitzer 7 Item Description
1 1 300025-03 BODY
2 2 311100-09 BEARING BUSH
3 3 311100-09 BEARING BUSH
4 4 311100-12 BEARING BUSH
5 5 BEARING BUSH
6 6 310004-01 SHAFT
7 7 374008-05 SHAFT SEAL
8 15 303316-51 FLY WHEEL
9 16 315107-05 KEY FOR FLYWHEEL
10 17 315100-08 KEY FOR FLYWHEEL
11 18 382011-04 WASHER FOR FLY WHEEL
12 19 382201-06 SPRING WASHER FOR FLY WHEEL
13 22 SIGHT GLASS
14 27 305412-04 BALL
15 30 366103-01 INSERT
16 38 315100-08 ECCENTRIC
17 39 KEY FOR ECCENTRIC
18 40 KEY FOR ECCENTRIC
19 43 KEY FOR ECCENTRIC
20 44 KEY FOR ECCENTRIC
21 47 302118-03 LOCKING PLATE
22 48 311103-04 CONNECTING ROD/ PISTON
23 49 302233-18 CONN. ROD
24 50 381401-20 BEARING BUSH FOR CONN. ROD
25 51 382231-06 PISTON
26 52 382300-31 PISTON PIN
27 53 372406-01 LOCKING PIN
28 54 300106-01 PISTON RING
29 55 380157-03 GASKET ROD/CYLINDER
30 56 320315-03 CYLINDER
31 61 320230-03 VALVE PLATE
32 62 325000-20 D.V. REED
33 71 304006-01 S.V. REED
34 73 372606-01 VALVE PLATE
35 76 302309-01 CYLINDER HEAD AIR COOLED
36 78 CYLINDER HEAD W.C.
37 101 372800-07 SET OF GASKET
