| PART NO. |
ITEM DESCRIPTION |
Rate SMC-65 |
Rate SMC-100 |
| 1B |
Threaded Nipple |
|
|
| 1C |

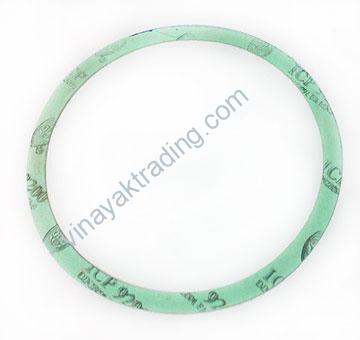

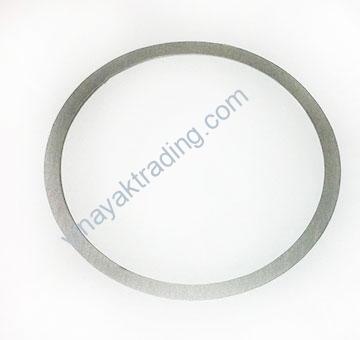

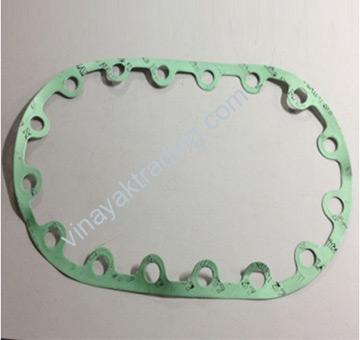

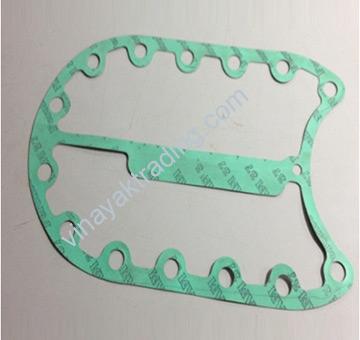

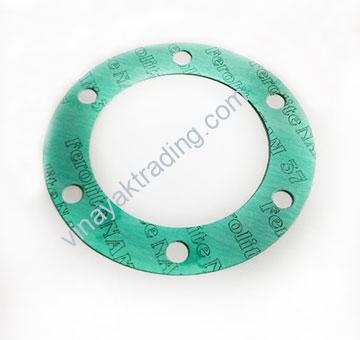

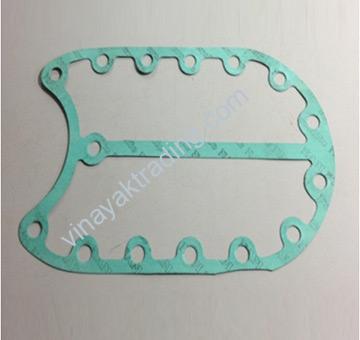

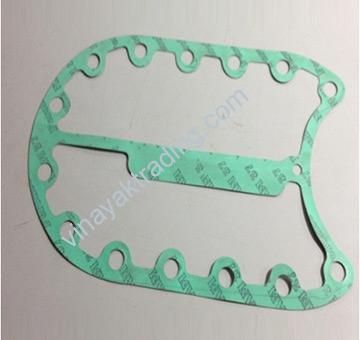

Gasket |
|
|
| 1D |
Gasket |
|
|
| 1F |
Threaded Plug |
|
|
| 1E |
Threaded Plug |
|
|
| 1G |
Dowty Ring |
|
|
| 1H |
Pipe Nut |
|
|
| 2B |
Gasket |
|
|
| 2D |
Gasket |
|
|
| 3C |
Oil Level Glass |
|
|
| 3D |
Gasket |
|
|
| 3E |
Circular Nut |
|
|
| 5C |

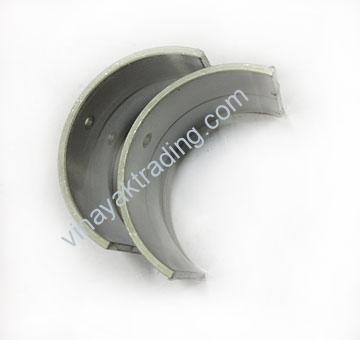

Main Bearing Std. |
|
|
| |
Main Bearing (U/s upto 0.5 mm) |
|
|
| |
Main Bearing (U/s upto 1.0 mm) |
|
|
| 5D |
Gasket (Thali Type) |
|
|
| 4B |
Gasket |
|
|
| 7B |
Gasket |
|
|
| 8A |
Shaft Seal Cover |
|
|
| 10 A-G |

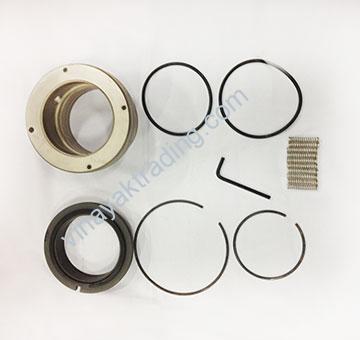

Shaft Seal Assbly |
|
|
| 10 A-G |
Shaft Seal Assly.with Imported Carbon |
|
|
| 10A |
Spring Retainer |
|
|
| 10B |

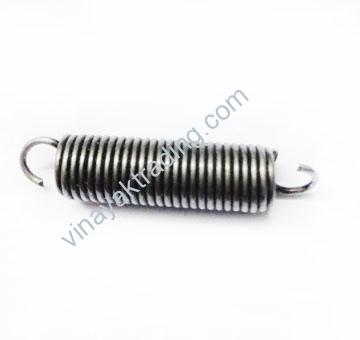

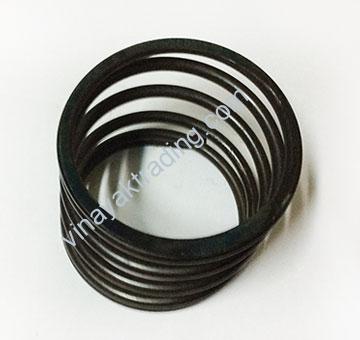

Spring |
|
|
| 10D |

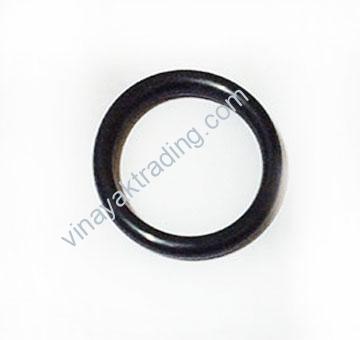

Neoprene ‘O’ Ring |
|
|
| 10C |
Thrast Collar |
|
|
| 10G |
“Neoprene ‘O’ Ring |
|
|
| 10E |
Slide Ring (Cast Iron) |
|
|
| 10F |
Slide Ring (Special Carbon) |
|
|
| 10F |
Slide Ring (Imported Carbon) |
|
|
| 11 |

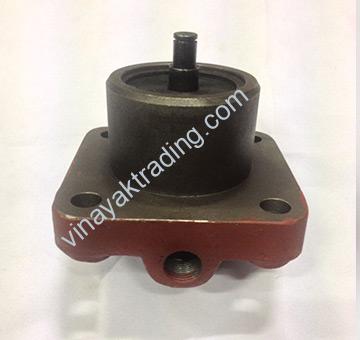

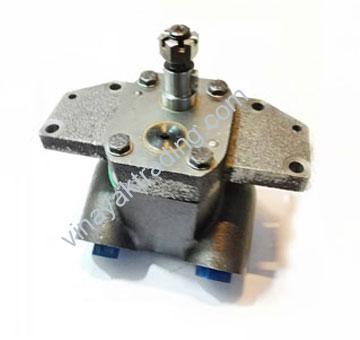

Oil Pump Assebly (Best India) |
|
|
| 11 |
Oil Pump Assebly (OEM) |
|
|
| 11C |
Bushes |
|
|
| 11D |
Bushes |
|
|
| 11E&F |

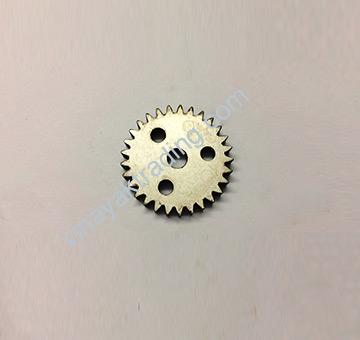

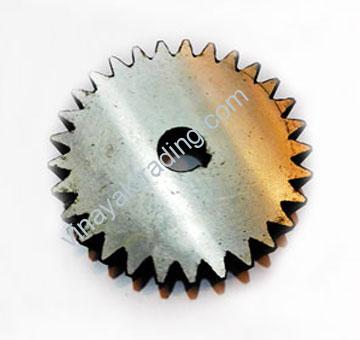

Gear Wheel (Pair) OEM |
|
|
| 11G&H |
Geal Wheel (Pair) |
|
|
| |
‘O’ ring for Oil Pump |
|
|
| |
Coupling |
|
|
| |
Pin for Coupling |
|
|
| 12 A-M |
Unloading Assembly |
|
|
| 12A |
Unloading Cylinder |
|
|
| 12B |
Unoading Piston |
|
|
| 12C |
Piston Rod (Any Size) |
|
|
| 12D |
Threaded Plug |
|
|
| 12E |
Gasket |
|
|
| 12F |

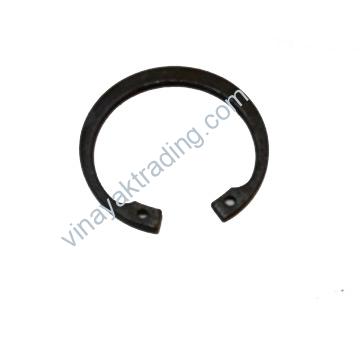

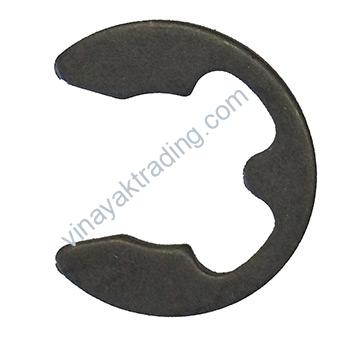

Seegar Ring |
|
|
| 12G |
Spring Guide |
|
|
| 12H |
Spring Retainer |
|
|
| 12J |
Spring |
|
|
| 12M |
Spring |
|
|
| 13 A-E |

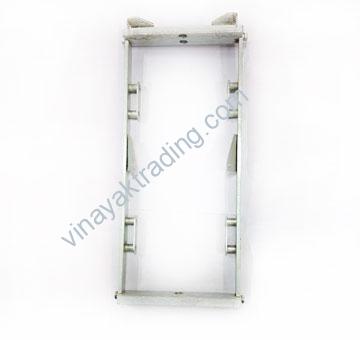

Single Frame for Unloading |
|
|
| 14A |
Bracket with Pin |
|
|
| 14B |
Spacing Washer |
|
|
| 15A |
Rocker Arm |
|
|
| 15B |
Bearing Cup |
|
|
| 15C |
Spring Holder (New Type) |
|
|
| 15D |
Spring |
|
|
| 15E |
Cup Washer |
|
|
| 16 |
Crankshaft |
|
|
| 16 |
Crankshaft |
|
|
| 16 |
Crankshaft |
|
|
| 16 |
Crankshaft |
|
|
| 16A |
Lock Washer |
|
|
| 16B |
Lock Nut |
|
|
| 16C |
Key |
|
|
| 17 |

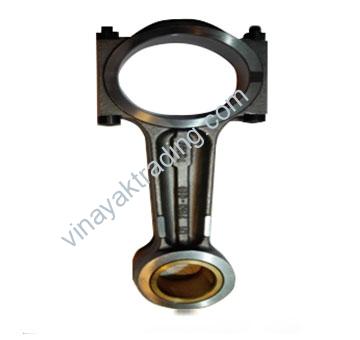

Connecting Rod Assly (C.I) |
|
|
| 17 |
Conn.Rod without Bearing (Forged) |
|
|
| |
Crank Case Heater |
|
|
| 17A |
C.R.Bearing STD Per Pair |
|
|
| |
C.R.Bearing (U/s upto 0.5 mm) |
|
|
| |
C.R.Bearing (U/s. upto 1.0 mm) |
|
|
| 17B |
Bushing for Piston Pin |
|
|
| 17C |

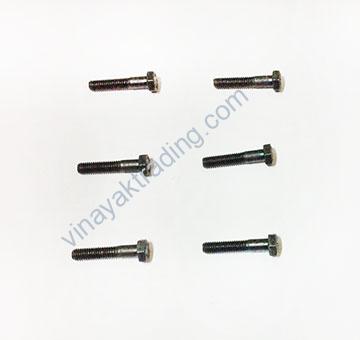

C.R.Bolt |
|
|
| 17D |
Castle Nut |
|
|
| 18A |

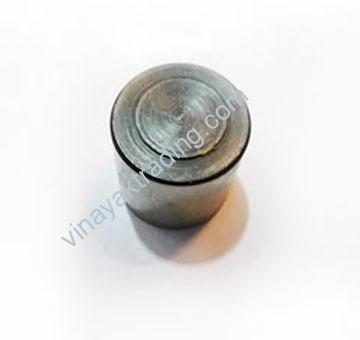

Piston Pin |
|
|
| 18C |

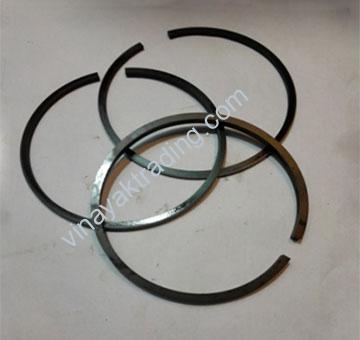

Pistion Ring |
|
|
| 18D |
Oil Ring |
|
|
| 18F |

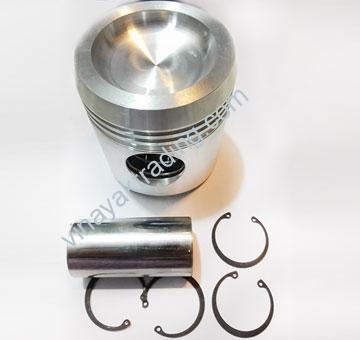

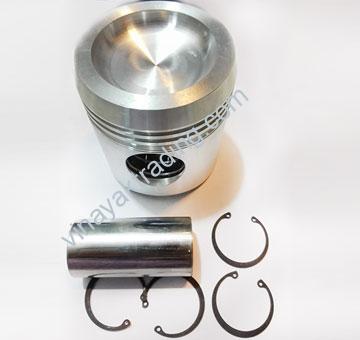

Piston |
|
|
| 19 A-L |
Cylinder Liner Assembly |
|
|
| 19A |

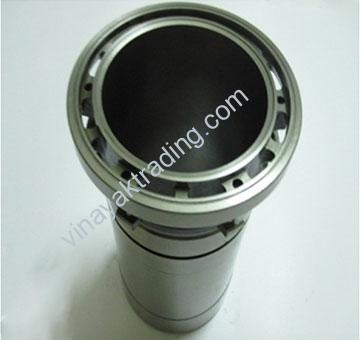

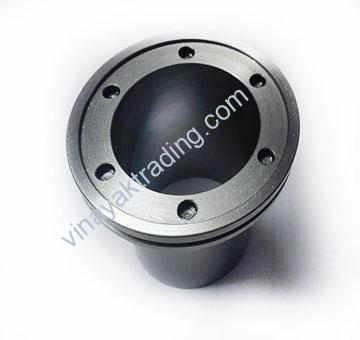

Cylinder Liner |
|
|
| 19B |
Unloading Ring |
|
|
| 19C |
Washer |
|
|
| 19D |
Spring |
|
|
| 19E |
Tension Spiral |
|
|
| 19F |
S.V.Ring Plate (Micro F) |
|
|
| 19G |
Spring |
|
|
| 19H |
S.V.Retaining Plate (Micro F) |
|
|
| 19J |
Guide for Discharge Valve |
|
|
| 19K |
Gasket |
|
|
| 20 |

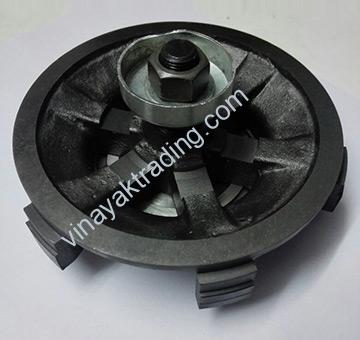

Discharge Valve Assembly |
|
|
| 21A |
Discharge Seat |
|
|
| 20B |
D.V.Retaining Plate |
|
|
| 20C |
D.V.Plate (Micro F) |
|
|
| 20D |
Screw |
|
|
| 20E |
Nut |
|
|
| 20F |
Guide |
|
|
| 20M |
Star |
|
|
| 21 |
Safety Head Spring |
|
|
| 22 A-M |
Oil Regulating Valve |
|
|
| 22A |
Cone |
|
|
| 22B |
Spring |
|
|
| 22E |
Union Nut |
|
|
| 22D |
Spindle |
|
|
| 22J |
“O” Ring |
|
|
| 23 |
Oil Charging Valve |
|
|
| 24 |
Safety Valve |
|
|
| 25 |
Suction Valve |
|
|
| |
Discharge Valve |
|
|
| 25A |
Housing |
|
|
| 25B |
Housing |
|
|
| 25H |
Valve Cone |
|
|
| |
Valve Cone |
|
|
| 25B |
Neck |
|
|
| |
Neck |
|
|
| 25H |
Sealing Ring |
|
|
| 25K |

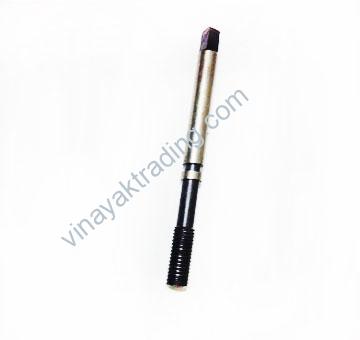

Spindle |
|
|
| 25L |
Lock Washer |
|
|
| 25M |
Packing Gland |
|
|
| 27 |
Manual Capacity Control |
|
|
| 33 |
Oil Strainer |
|
|
| 34 |

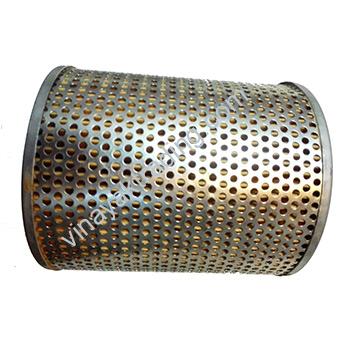

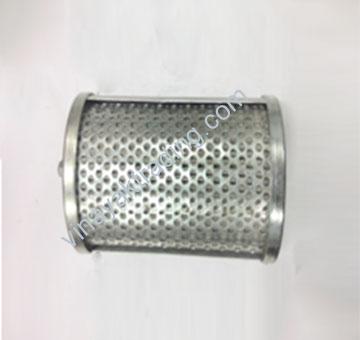

Suction Strainer |
|
|
| |
Filter Bag |
|
|
| |
‘O’ Ring Set for Packing Gland |
|
|
| |
Gasket Set 2/65 |
|
|
| |
Gasket Set 4/65 |
|
|
| |
Gasket Set 6/65 |
|
|
| |
Gasket Set 8/65 |
|
|
| |
‘O’ Ring Set |
|
|
| |
Sealing Ring Set |
|
|
| |

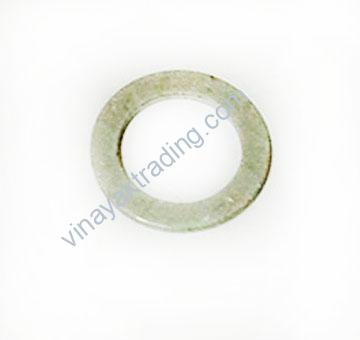

Alluminium Washer Set |
|
|
| |
Coil For Solenoid Valve |
|
|
| |
Solenoid Valve |
|
|
| |
Dowty Ring Set |
|
|
| |

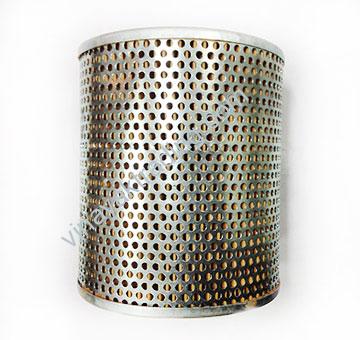

Filter |
|
|
| |
C.R.Bearing |
|
|
| |
P.E.Bearing |
|
|
| |
S.E.Bearing |
|
|
