Compressor Spares for CARRIER / VOLTAS MODEL 5H 40 / 60 / 80 / 120
| Image | Carrier Part No | Description | 5H 40/46 | 5H 60/66 | 5H 80/86 | 5H 120/126 |
 |
5H40-2221 | Snap Ring for liner | 3 | 4 | 6 | 8 |
 |
5H40-2231 | Pin for Valve Lifter | 18 | 24 | 36 | 48 |
 |
5H40-2241 | Spring for Valve Lifter | 18 | 24 | 36 | 48 |
 |
5H40-2433 | Shaft Seal Cover Plate | 1 | 1 | 1 | 1 |
 |
5H40-2851 | Shaft Key | 1 | 1 | 1 | 1 |
 |
5F20-3742 | Heater Casing | 1 | 1 | 2 | 2 |
 |
EBS1F4270 | Relief Valve | 1 | 1 | 1 | |
 |
6.301400 | Relief Valve Assembly 5H120 | ||||
 |
HT31AZ-241 | Crankcase Heater 230 v | 1 | 1 | 2 | 2 |
 |

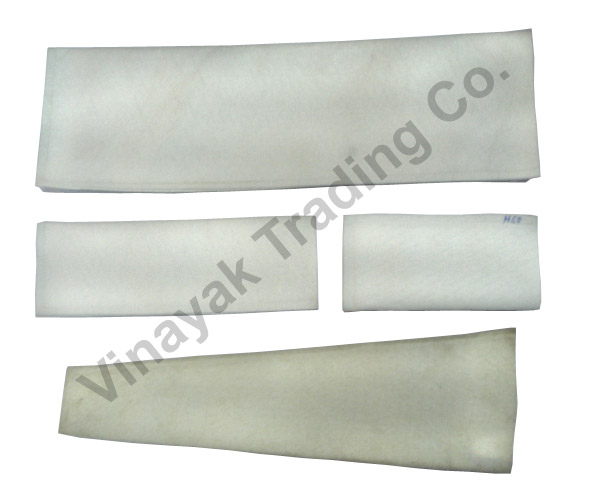

5H40 A382 | Suction Felt Package | 1 | |||
| 5H60 A382 | Suction Felt Package | 2 | ||||
| 5H80 A382 | Suction Felt Package | 1 | ||||
| 5H120 A382 | Suction Felt Package | 2 | ||||
|
6200024 | Retaining Bend | 1 | |||
| 6200024 | Retaining Bend | 2 | ||||
| 6200024 | Retaining Bend | 1 | ||||
| 6200024 | Retaining Bend | 2 | ||||
| 6200024 | Retaining Bend | 1 | ||||
| 6200024 | Retaining Bend | 2 | ||||
| 6200024 | Retaining Bend | 2 | ||||
| 6200024 | Retaining Bend | 2 | ||||
 |
5H40-932 | Oil Return Check Valve | 2 | 2 | 2 | |
 |
5H40-103 | Connecting Rod Assembly | 4 | 6 | 8 | 12 |
 |
5H40-1041 | Connecting Rod Bolt | 4 | 6 | 8 | 12 |
 |
AT61AA272 | Connecting Rod Nut | 8 | 12 | 16 | 24 |
 |
5H40-1031 | Connecting Rod Small end Bush | 4 | 6 | 8 | 12 |
 |
5H40-112 | Discharge Valve Guide Assembly | 4 | 6 | 8 | 12 |
 |
5H40-1132 | Discharge Valve Ring Plate | 4 | 6 | 8 | 12 |
 |
5H40-1191 | Discharge Valve Inner Seat | 4 | 6 | 8 | 12 |
 |
5H40-1201 | Seal Lock Plate | 4 | 6 | 8 | 12 |
 |
5H40-1553 | Discharge Valve Guide | 4 | 6 | 8 | 12 |
 |
5H40-1801 | Discharge Valve Spring | 24 | 36 | 48 | 72 |
 |
5H40-237 | Oil Screen package | 1 | 1 | 1 | |
 |
5H120-252 | Oil Screen package | 1 | |||
 |
5H40-163 | Unloader Power Assembly | 3 | 4 | 6 | 8 |
 |
5H40-1814 | Pork for above | ||||
 |
5H40-477 | Seal Assembly | 1 | 1 | 1 | |
 |
5H120-477 | Seal Assembly | 1 | |||
|
5H120-948 | Bearing Head Assembly | 1 | 1 | 1 | |
| 5H120-948 | Bearing Head | 1 | ||||
 |
5H40-150 | Oil Pump Package | 1 | 1 | 1 | |
|
|
5H120-150 | Oil Pump Package | 1 | |||
 |
5H40-1022 | Main Bearing Pump End | 1 | 1 | 1 | |
| 5H120-1022 | Main Bearing Pump End | 1 | ||||
 |
7k3-1542 | Oil Pump Bushing | 1 | 1 | 1 | |
| 5H120-7052 | Oil Pump Bush | 1 | ||||
 |
5H40-962 | Oil Pressure Regulator | 1 | 1 | 1 | |
| 5H120-782 | Oil Pressure Regulator | 1 | ||||
|
5H40-114 | Crankshaft 5H40 | 1 | |||
 |
5H46-114 | Crankshaft 5H46 | 1 | |||
|
5H60-114 | Crankshaft 5H60 | 1 | |||
 |
5H66-562 | Crankshaft 5H66 | 1 | |||
 |
5H80-562 | Crankshaft 80 | 1 | |||
| 5H86-572 | Crankshaft 5H86 | 1 | ||||
 |
5H120-114 | Crankshaft 5H120 | 1 | |||
| 5H126-562 | Crankshaft 5H126 | 1 |
