Image |
Carrier Part No |
Description |
5H 40/46 |
5H 60/66 |
5H 80/86 |
5H 120/126 |
|
5H40-502 |
(Complete Gasket Set) Gasket 5H40/46 |
1 |
|
|
|
| 5H60-502 |
Gasket 5H60/66 |
|
1 |
|
|
| 5H80-502 |
Gasket Set 5H80/86 |
|
|
1 |
|
| 5H120-502 |
Gasket Set 5H120/126 |
|
|
|
1 |
|
5H40-1002 |
Bearing Half Connecting Rod std. |
8 |
12 |
16 |
24 |
|
5H40-1012 |
Main Bearing Seal End |
1 |
1 |
1 |
1 |
|
5H40-1023 |
Piston 5H40/60/80/120 |
4 |
6 |
8 |
12 |
|
5H46-1023 |
Aluminum Piston 5H46/66/86/126 |
4 |
6 |
8 |
12 |
|
5H46-1051 |
Piston Pin |
4 |
6 |
8 |
12 |
|
5H40-3531 |
Lock Ring (Circlip) |
8 |
12 |
16 |
24 |
|
5H40-1091 |
Oil Ring |
8/4 |
12/6 |
16/8 |
24/2 |
|
5H46-1071 |
Piston Ring Compression 5H46/66/86/126 |
8 |
12 |
16 |
24 |
|
5H40-1072 |
Seal End Bearing Washer (Steel) |
1 |
1 |
1 |
1 |
|

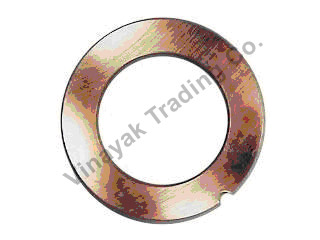

5H120-1072 |
Seal End Thrust Washer (Steel) |
|
|
|
1 |
|
5H40-1082 |
Pump End Bearing Washer |
1 |
1 |
1 |
1 |
|

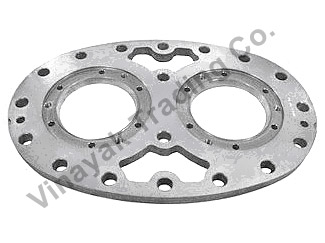

5H40-1103 |
Valve Plate |
2 |
3 |
4 |
6 |
|
5H40-1142 |
Suction Valve Disc |
4 |
6 |
8 |
12 |
|
5H40-1481 |
Discharge Valve Guide Lock Washer |
12 |
18 |
24 |
36 |
|
5H40-1752 |
Unloader Sleeve |
3 |
4 |
6 |
8 |
|
5H40-1791 |
Suction Valve Spring |
24 |
36 |
48 |
72 |
