Compressor Spares for CARRIER / VOLTAS MODEL 5F 40 / 60 / 80 / 120
| Images | Carrier Part No. | Description | 5F 20 | 5F 30 | 5F 40 | 5F 60 |
 |
0211202 5F20 | Gasket 5F20 | 1 | |||
| 0211204 5F30 | Gasket 5F30 | 1 | ||||
| 0211206 5F40 | Gasket Set 5F40 | 1 | ||||
| 0211208 5F60 | Gasket Set 5F60 | 1 | ||||
|
5F20-1002 | Con Rod Bearing | 4 | 6 | 8 | 12 |
|
5F40-1012 | Main Bearing Seal End | 1 | 1 | ||
|
5F20-1022 | Main Bearing Pump End | 1 | |||
|
5F40-1022 | Main Bearing Pump End | 1 | 1 | 1 | |
|
5F30-1012 | Main Bearing Seal End | 1 | |||
|
5F20-1022 | Main Bearing Seal End | 1 | |||
|

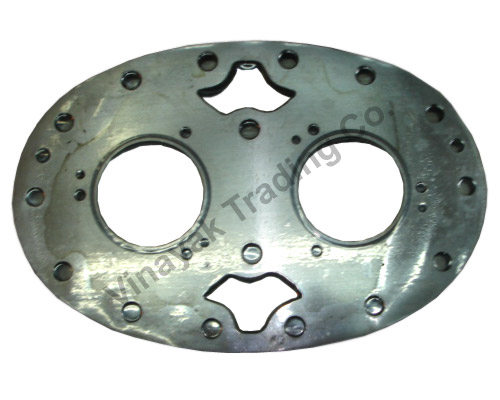

5F40-1103 | Valve Plate | 2 | 3 | ||
|

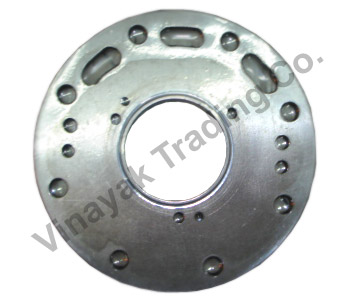

5F30-1103 | Valve Plate | 2 | 3 | ||
|
5F20-1142 | Suction Valve Disc | 2 | 3 | 4 | 6 |
|
5F20-1132 | Discharge Valve Disc | 2 | 3 | 4 | 6 |
|
6g45-1151 | Valve Lifter Pin | 6 | 12 | 18 | 24 |
|

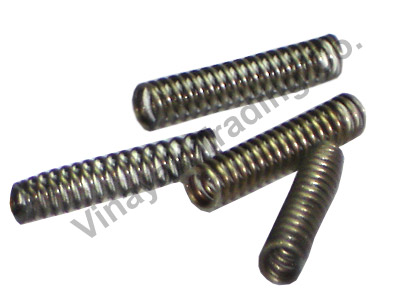

6g45-1191 | Valve Lifter Spring | 6 | 12 | 18 | 24 |
|
5F20-1481 | D.V.Guide Lock Washer | 6 | 9 | 12 | 18 |
|
5F20-1741 | P.E.Bearing Washer (Brass) | 2 | 2 | 1 | 1 |
| 5F40-1751 | Seal End Bearing Washer (Brass) | 1 | 1 | |||
|
5F40-1761 | Seal End Thrust Washer | 1 | 1 | ||
|
5F20-1761 | Seal End Thrust Washer (Steel) | 1 | 1 | ||
|
5F20-1752 | Unloader Sleeve | 1 | 2 | 3 | 4 |
|
5F20-1791 | Suction Valve Spring | 12 | 18 | 24 | 36 |
|
5F20-1801 | Discharge Valve Spring | 12 | 18 | 24 | 36 |
| 1 | 1 | 1 | 1 | |||
|
5F20-112 | D.Valve Guide Assy | 2 | 3 | 4 | 6 |
|
5F20-1191 | D.V. Guide Inner Sear | 2 | 3 | 4 | 6 |
|
5F20-1201 | Seal Lock Plate | 2 | 3 | 4 | 6 |
|
5F20-1322 | D.V.Guide (Bare) | 2 | 3 | 4 | 6 |
|
5F40-114 | Crankshaft 5F40 | 1 | |||
|
5F60-114 | Crankshaft 5F60 | 1 | |||
 |
5F20-1183 | Crankshaft 5F20 | 1 | |||
| 5F30-1184 | Crankshaft 5F30 | 1 | ||||
|
5F40-127 | Oil Filter Screen | 1 | 1 | ||
|
5F20-127 | Oil Filter Screen | 1 | 1 | ||
 |
5F40-132 | Suction Strainer 5F40 | 1 | |||
| 5F60-132 | Suction Strainer 5F60 | 1 | ||||
| 5F20-132 | Suction Strainer 5F20 | 1 | ||||
| 5F30-132 | Suction Strainer 5F30 | 1 | ||||
| Hand Hole Cover | 1 | 1 | ||||
|
5F20-173 | Unloader Power Element As | 1 | 2 | 3 | 4 |
 |
Seal Assy 5F40/60 | 1 | 1 | |||
| 5F20-317 | Seal Assy 5F20/30 | 1 | 1 | |||
 |
5F40-2073 | Seal Cover Plate | 1 | 1 | ||
| 5F20-2073 | Seal Cover Plate 5F20/30 | 1 | 1 | |||
 |
5F20-1003 | Cylinder Sleeve | 2 | 3 | 4 | 6 |
|
5F20-1023 | Piston | 2 | 3 | 4 | 6 |
|
5F20-1051 | Piston Pin | 2 | 3 | 4 | 6 |
|
5F20-1071 | Compression Ring | 4 | 6 | 8 | 12 |
|
|
5F20-1091 | Oil Ring | 4 | 6 | 8 | 12 |
|
5F20-3521 | Lock Ring | 4 | 6 | 8 | 12 |
|
5F20-130 | Oil Pump Package | 1 | 1 | 1 | 1 |
|
5F20-0103 | Con.Rod Assy | 2 | 3 | 4 | 6 |
|
5F20-1031 | Con.Rod Bush | 2 | 3 | 4 | 6 |
|
5F20-1041 | Con.Rod Bolt | 4 | 6 | 8 | 12 |
|
AT161AA202 | Con.Rod Nut | 4 | 6 | 8 | 12 |
 |
EN07E039 | Dish. Shut Off Valve 1 -3/8 | 1 | 1 | ||
| Suction Shut Off Valve 1 - 3/8 | 1 | 1 | ||||
|
Dish. Shut Off Valve 1 5/8 | 1 | ||||
|
Suction Shut Off Valve 2 1/8 | 1 | ||||
|
Discharge Shut off Valve 7/8 or 1 1/8 | 1 | ||||
|
Suction Shut off Valve 1 1/8 | 1 | ||||
|
5H40-101 | Oil Return Check Valve | 1 | 1 | ||
 |
Oil Return Check Valve | 1 | 1 | |||
| - | 5H40-782 | Oil Pr.Regulating Valve | 1 | 1 | ||
|
Control Valve Assy | 1 | 1 | 1 | 1 | |
 |
5F20-1001 | Sight Glass | 1 | 1 | 1 | 1 |
|
5F40-767 | Hydraulic Relay | 1 | 1 | 1 | 1 |
|
Bellow assy for C.Valve | 1 | 1 | 1 | 1 | |
|
Stem For Control Vale | 1 | 1 | 1 | 1 | |
|
7K3-1542 | Oil. Pump Bush | 1 | 1 | 1 | 1 |
 |
Flywheel 5F20 2B | 1 | ||||
| Flywheel 5F30 3B | 1 | |||||
| Flywheel 5F40-636 | 1 | 1 | ||||
 |
Felt Filter | 1 | ||||
| Felt Filter | 1 | |||||
| Felt Filter | 1 | |||||
| Felt Filter | 1 | |||||
|
Magnetic Plug | 1 | 1 | 1 | 1 |
